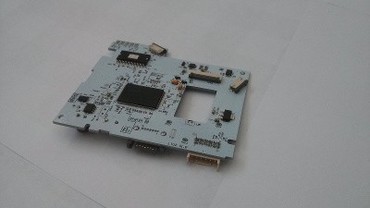

[LTU2] LiteOn 16D5S/16D4S UNLOCKED Replacement PCB

Item-No: 221
Weight: 0.042 kg




110+25+50+100+
12.56€12.56€12.56€12.56€12.56€


12.56 €



READ THE TUTORIAL BEFORE BUYING! YOU NEED TO READ OUT THE DVD-KEY WITH RGH FOR 16D5S DRIVES, THIS IS VERY DIFFICULT AND PRICY!

Also note soldering wires is required for this PCB!


Tutorial: -- Xecuter LTU2 16D5S Instructions -- (16D4S is the same but you can read the key out from the drive, no need for RGH)


As with the DG-16D4S, the SPI is also locked on DG-16D5S drives (in addition to the firmware being encrypted), so this replacement PCB allows for the user to unlock and re-lock the SPI at will, and offers full ability to write your own firmware to the drive including your own drive key so you are able to replace your DVD drive if it becomes faulty without having to send it away for expensive repairs.

The Liteon DG-16D5S LTU2 Unlocked Replacement PCB has been manufactured so it is much cheaper than the original LTU PCB!

Fits all versions of Liteon DG-16D4S and LiteOn DG-16D5S
Supports the latest LTU2 FW
Easily programmable using the X360USB PRO V1 or V2 (Update to the latest firmware v20.1)
Compatible with professional power adapters such as the X360USB PRO V2, CK3 Pro & CK3 Mini
Requires the latest Jungle Flasher & J-Runner
C4E's new LTU2 (LT Ultimate v2) firmware now allows booting of any Liteon or Hitachi based system without any previous firmware dump (inc the DG-16D5s 1175/1532 and Hitachi 0500/0502 firmwares) – all you need is the DVD Key and FCRT.bin which can be extracted using RGH or DGX methods.

Note: Due to how the custom chipset has had to be designed there is no CD-R support.
